Web stack · infrastructure

What happens when you type https://www.google.com and press Enter

From a single keystroke to a rendered page — the journey across DNS, TCP/IP, a firewall, HTTPS/SSL, a load balancer, a web server, an application server, and a database.

In an interview, start by asking whether to focus on one area — a front-end role may want the DOM/render path, an SRE role may want the load-balancing mechanism. This post takes the infrastructure path.

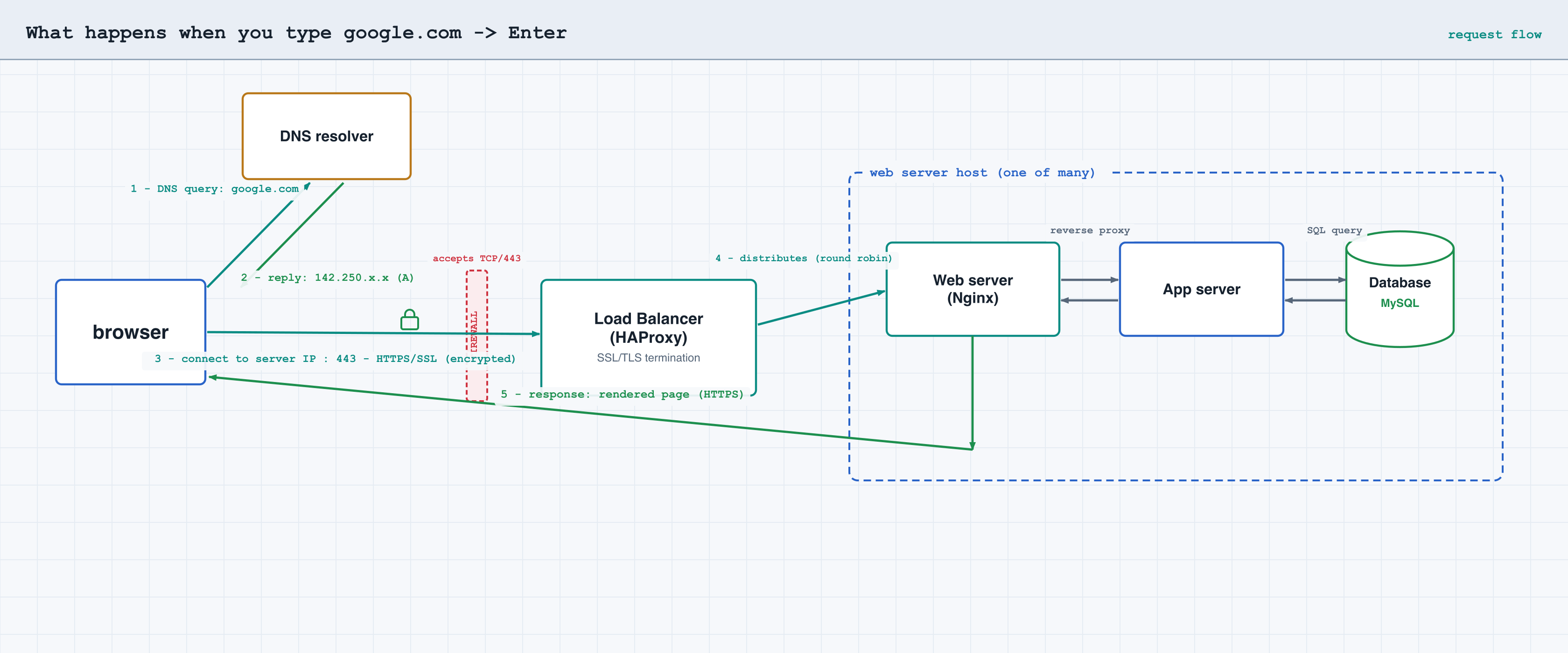

Request flow: browser, DNS, firewall, load balancer, web server, app server, database
The full request flow.

1DNS request — turning the name into an address

The browser needs the address behind www.google.com. It checks its caches (browser, OS, /etc/hosts); on a miss it asks a DNS resolver, which walks the DNS hierarchy (root → .com TLD → Google's authoritative name servers). DNS resolves www.google.com to another hostname (via a CNAME record) or to an IP address (via an A/AAAA record). The answer is cached for the record's TTL.

2TCP/IP — opening a connection

With the IP in hand, the browser opens a TCP connection to the server IP on port 443 (HTTPS). TCP's three-way handshake (SYN → SYN-ACK → ACK) sets up a reliable, ordered byte stream, and the packets are routed across the internet by IP.

3Firewall — only the right traffic gets through

Before reaching the service, the connection passes through a firewall that accepts traffic on TCP port 443 and denies everything else. Any packet on a disallowed port or from a blocked source is dropped here.

4HTTPS/SSL — encrypting the channel

On top of TCP, a TLS handshake runs. The server presents its SSL certificate, signed by a Certificate Authority the browser trusts; this proves the server's identity and is used to negotiate a shared session key. From here, all traffic is encrypted using HTTPS/SSL — giving confidentiality, integrity, and authentication.

5Load balancer — choosing a server

The public IP belongs to a load balancer (e.g. HAProxy), not a single machine. The load balancer distributes the request to one of its web servers, using a distribution algorithm such as round robin, after health-checking its backends.

6Web server — serving the page

The chosen web server (e.g. Nginx) answers the request by serving the web page. It handles HTTP, serves static content directly, and reverse-proxies dynamic requests to the application layer behind it.

7Application server — generating the page

For dynamic content, the application server generates the web page by running the application code (the business logic). The page does not exist until it is built for this request.

8Database — gathering the data

To build the page, the application server queries the database (e.g. MySQL) to gather the necessary data. The rows come back, the application finishes building the page, and the response travels back — encrypted — through the web server, load balancer, and firewall to your browser, which parses the HTML/CSS/JS and paints the page.
